AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU

Name: AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU
Brand: IOASPOW
Price: 14.5 USD

China AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU wholesale

Brand Name : IOASPOW

Model Number : iAD225

Certification : CE FCC UKCA

Place of Origin : China

MOQ : 100

Price : USD 14.5 PCS

Payment Terms : T/T

Supply Ability : 1000 Pcs 25 day

Packaging Details : 50 pieces per box

Contact Now

AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU

Dimensions(MM):L101.6×W50.8×H25.4
Input voltage:AC90V - 264V / 50- 60HZ APFC
Output Power:140W/225W
Overall efficiency:>=93%
Standby power consumption:Less than 0.5W
Operating temperature:-10℃～50℃
Storage temperature:-20℃～80℃
Cooling method:Natural cooling/forced air cooling

Forced air cooling Output characteristics:

Model name	The output voltage(V)	Minimum(V)	Max(V)	Light load(A)	Overload(A)	Ripple(MV)	Short circuit protection
iAD225-S12	12	11.4	12.6	0	18.75	120	Self-recovery
iAD225-S15	15	14.25	15.75	0	15	150	Self-recovery
iAD225-S19	19	18.05	19.95	0	11.8	190	Self-recovery
iAD225-S24	24	22.8	25.2	0	9.37	240	Self-recovery
iAD225-S27	27	26.5	28.4	0	8.33	240	Self-recovery
iAD225-S36	36	35.28	37.8	0	6.25	360	Self-recovery
iAD225-S48	48	47.1	50.4	0	4.68	480	Self-recovery
iAD225-S54	54	52.5	55.5	0	4.09	540	Self-recovery

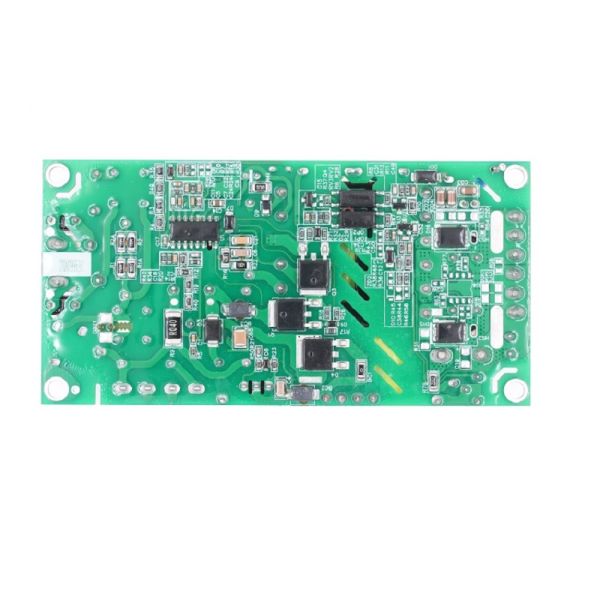

AC to DC bare board open frame 225W industrial medical switch power supply output 12V 15V 24V 36V 48V 54V PSU Images
